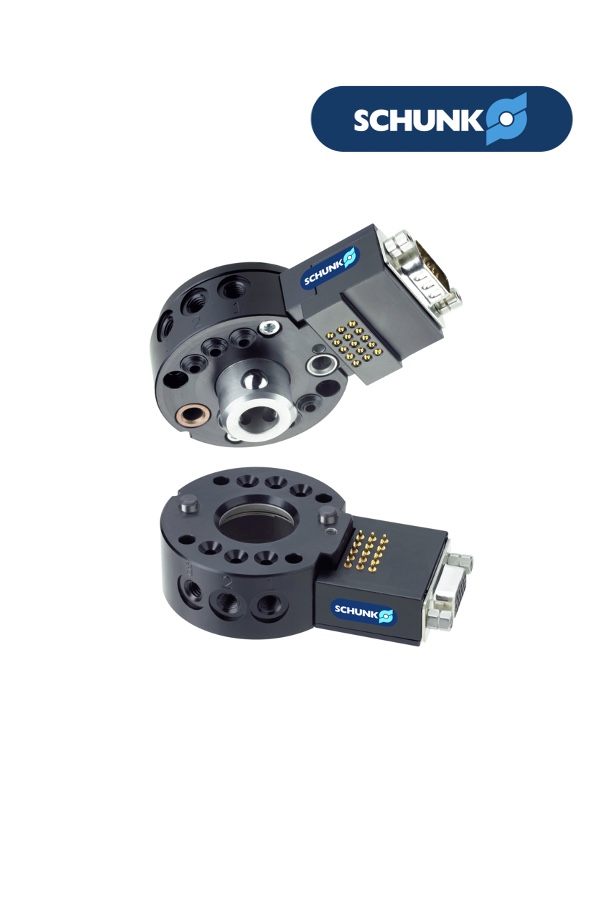

Schunk Quick change system SWS

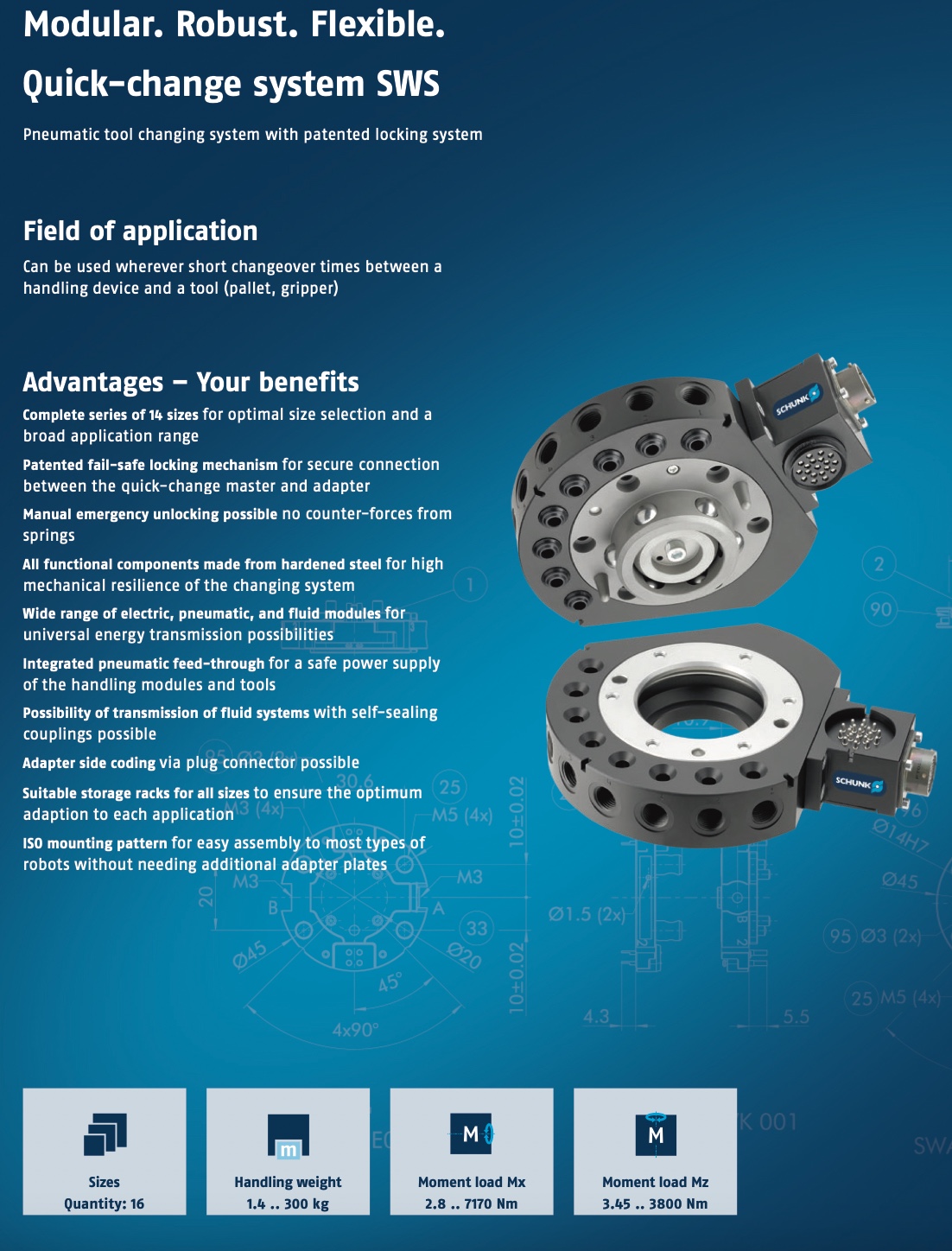

Pneumatic tool changing system with patented locking system

Field of application

Can be used wherever short changeover times between a handling device and a tool (pallet, gripper)

Advantages – Your benefits

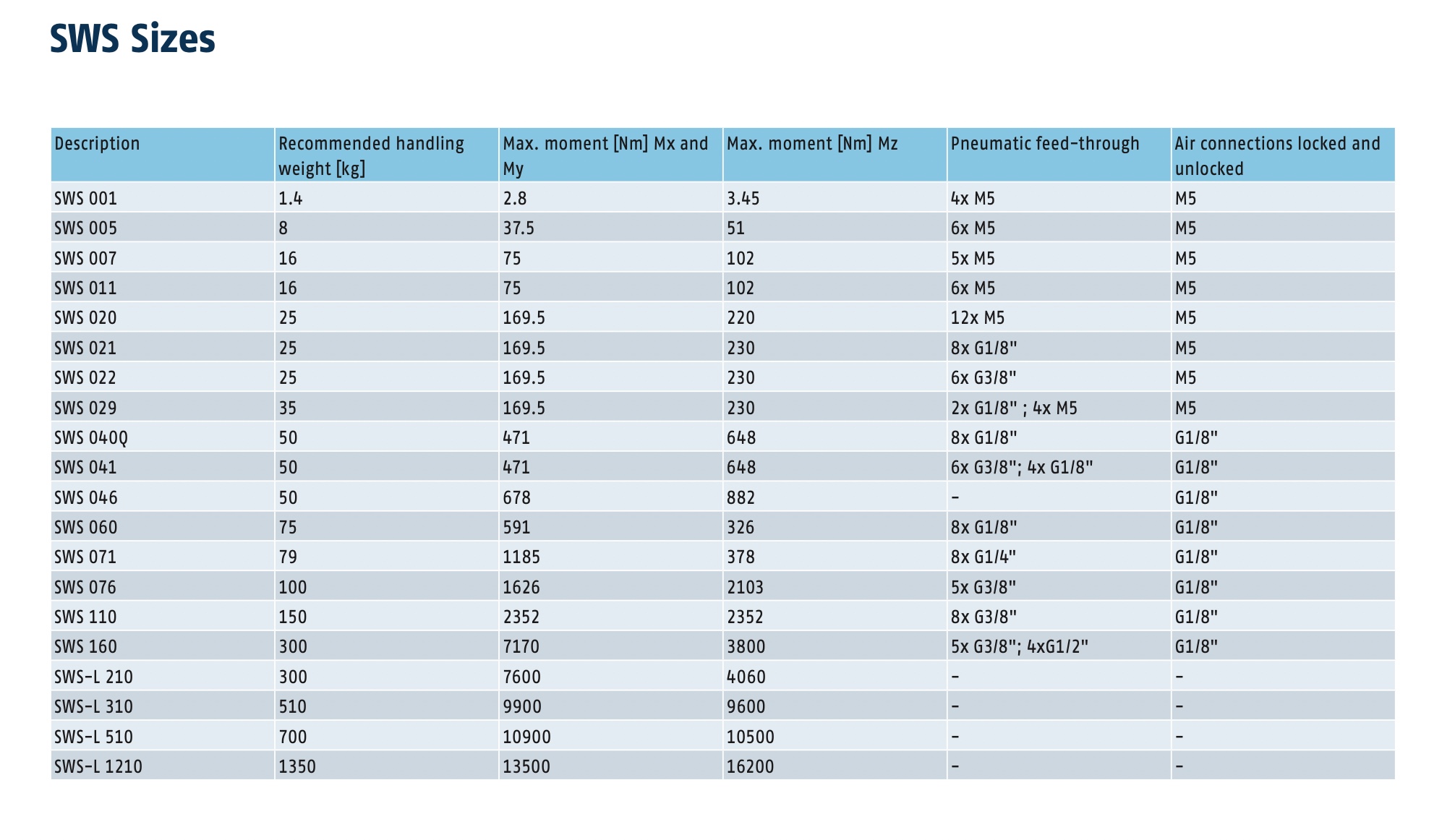

Complete series of 14 sizes
for optimal size selection and a broad application range

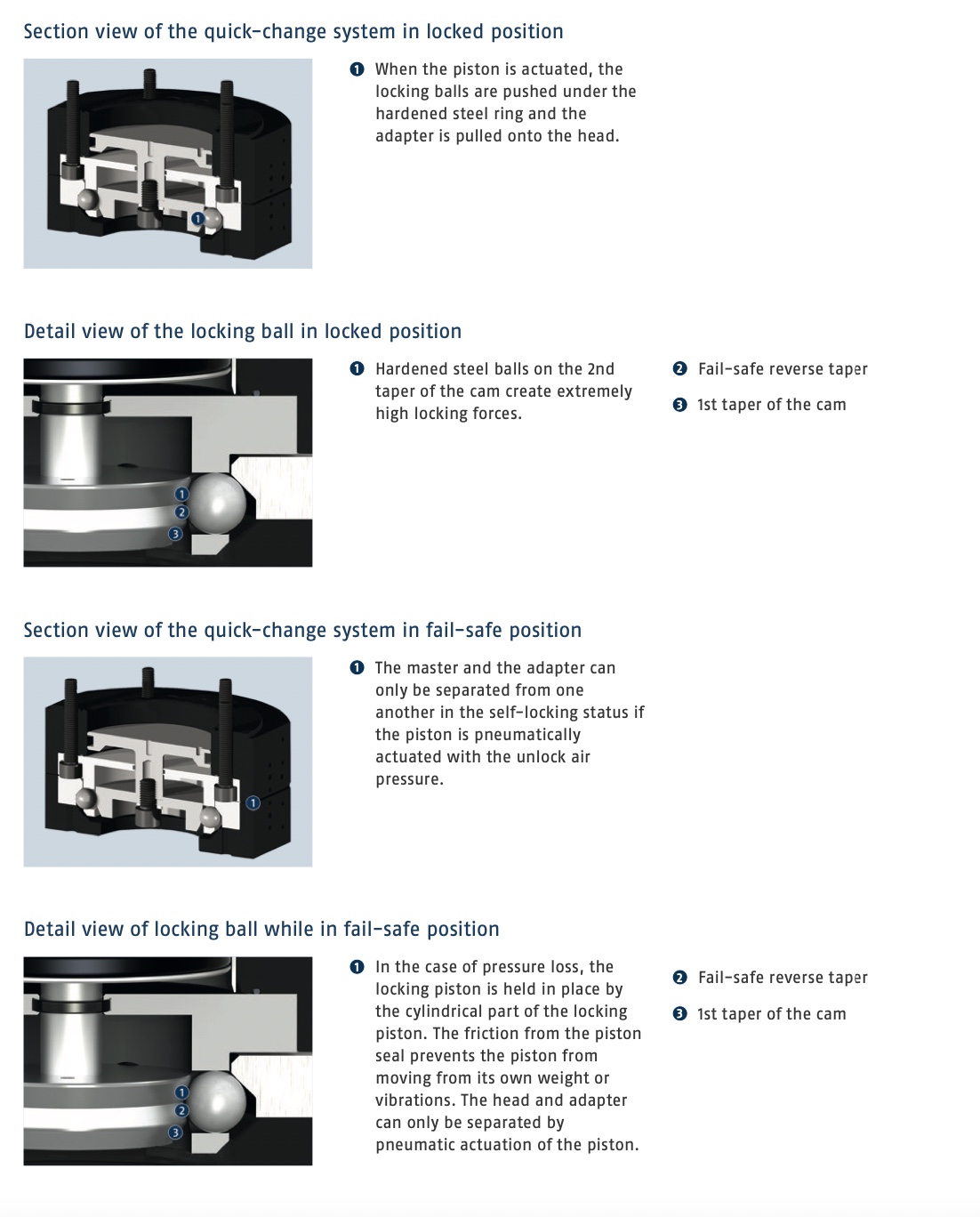

Patented fail-safe locking mechanism
for secure connection between the quick-change master and adapter
Manual emergency unlocking possible
no counter-forces from springs
All functional components made from hardened steel
for high mechanical resilience of the changing system
Wide range of electric, pneumatic, and fluid modules
for universal energy transmission possibilities
Integrated pneumatic feed-through
for a safe power supply of the handling modules and tools
Possibility of transmission of fluid systems
with self-sealing couplings possible
Adapter side coding
via plug connector possible
Suitable storage racks for all sizes
to ensure the optimum adaption to each application
ISO mounting pattern
for easy assembly to most types of robots without needing additional adapter plates

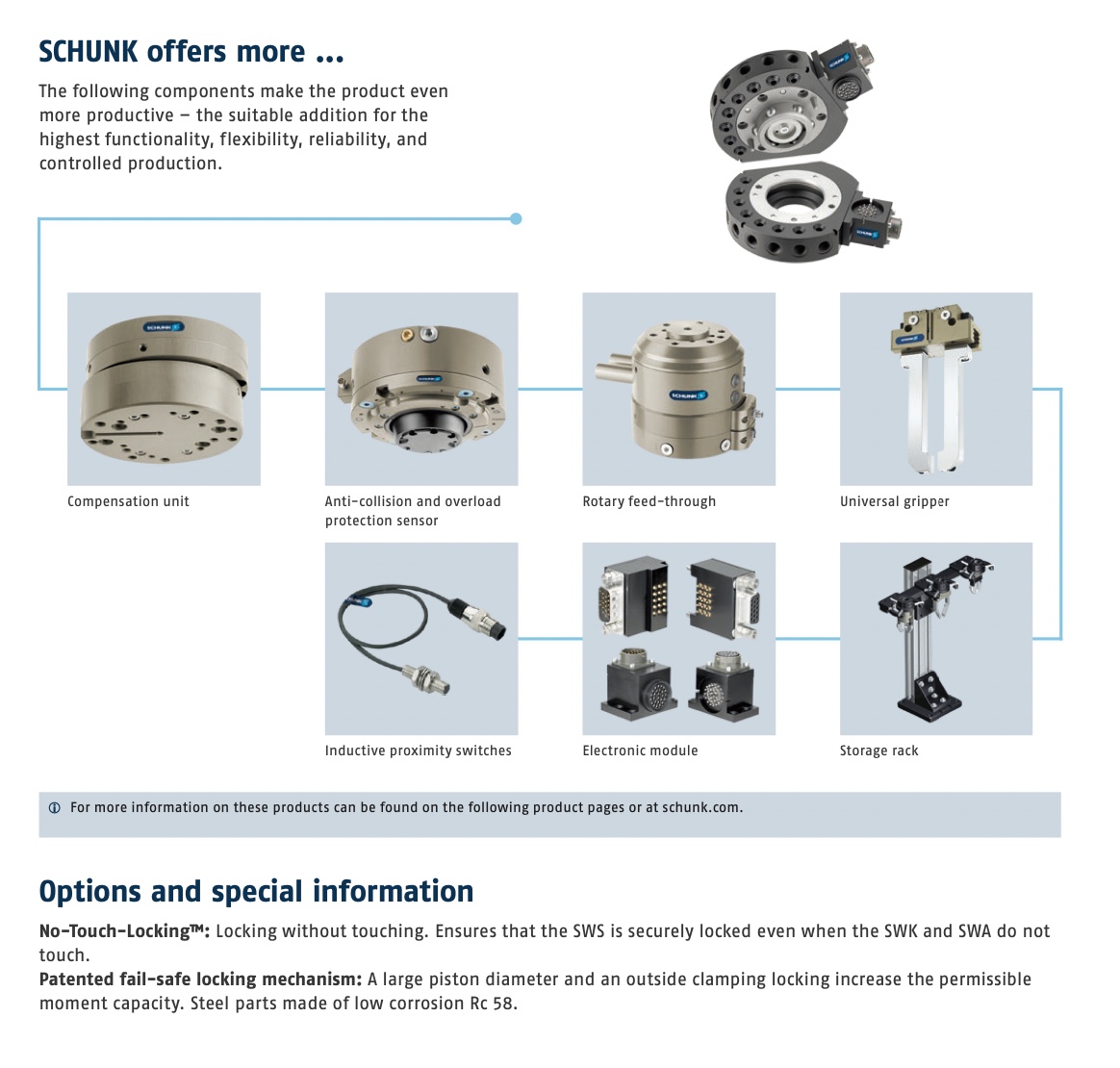

Options and special information

Locking without touching. Ensures that the SWS is securely locked even when the SWK and SWA do not touch.

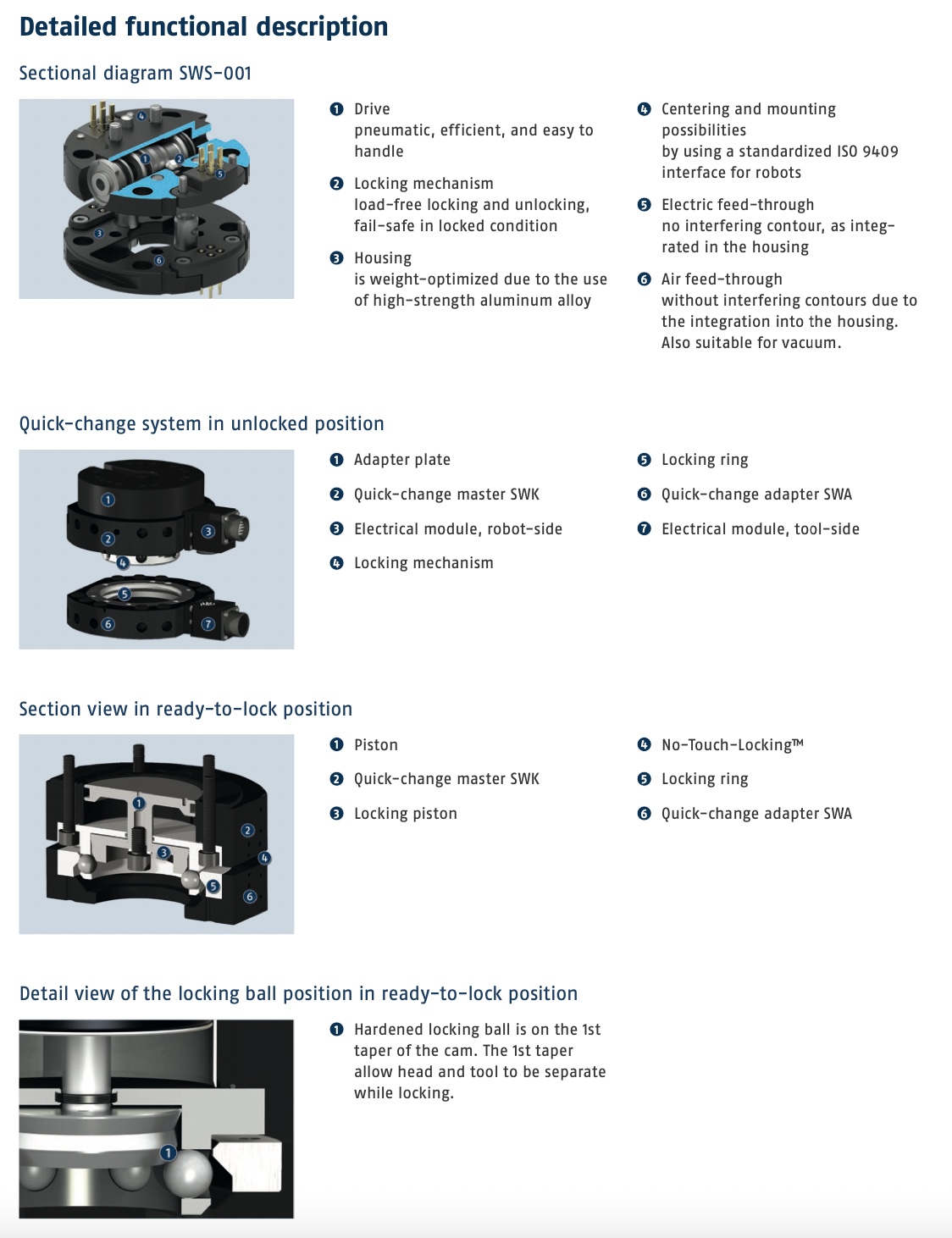

Patented fail-safe locking mechanism
A large piston diameter and an outside clamping locking increase the permissible moment capacity. Steel parts made of low corrosion Rc 58.
